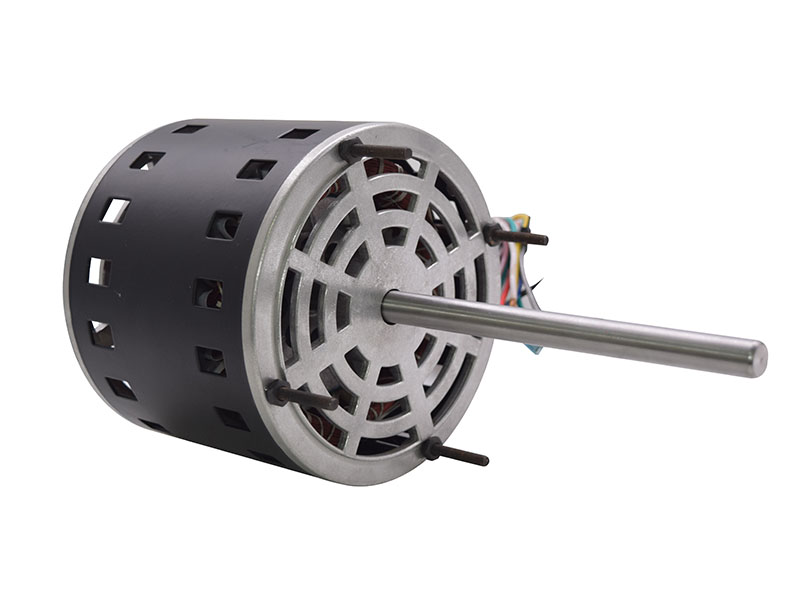

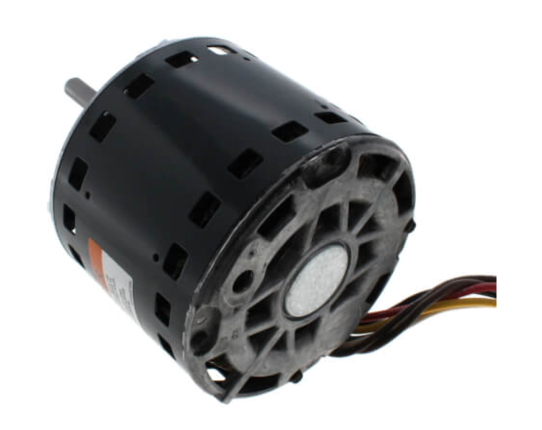

Frame 48 (5-5/8”). Direct-Drive Blower Motors, UL Listed
Brand:Lianjia Electric
Series:140 Series
Style:Stretch cover
Model:YDK139/30-4（YDK140-245-4A）
Service Hotline:008613961291308
Series:140 Series
Style:Stretch cover
Model:YDK139/30-4（YDK140-245-4A）
Service Hotline:008613961291308
♦Special note: slightly different from the actual product.
♦Customization: Supports non-standard customization.
♦Inventory delivery: National delivery guarantee!
♦Kind reminder: Non quality issues do not support returns!
♦Customization: Supports non-standard customization.
♦Inventory delivery: National delivery guarantee!
♦Kind reminder: Non quality issues do not support returns!
DESCRIPTION
Description
Features and Specifications:
Double Rotation CW/CCW.
Continuous Air Over.
60 cycles.
All angle mounting.
Frame 48 (5-5/8”).
Automatic reset thermal protection.
Shaft of 1/2” with extra long leads.
High efficiency.
Quiet operation.
Capacitor not included.
Insulation class B.
UL Recognized Component.
Technical Specifications
| Part No. | Hp | Power | Amp | RPM | Capacitor(mfd/V) | Bearing | Speeds | Shaft Diameter |
|---|---|---|---|---|---|---|---|---|
| RS1971 | 1/4 | 208-230/1/60 | 1.7 | 1,075 | 5×370 | Ball | 3 | 1/2″ |
| RS1972 | 1/3 | 208-230/1/60 | 2.7 | 1,075 | 5×370 | Ball | 3 | 1/2″ |
| RS1973 | 1/2 | 208-230/1/60 | 3.7 | 1,075 | 7.5×370 | Ball | 3 | 1/2″ |
| RS8905 | 3/4 | 208-230/1/60 | 4.6 | 1,075 | 10×370 | Ball | 3 | 1/2″ |
| RS5461 | 1/6 – 1/2 | 208-230/1/60 | 3.9 | 1,075 | 10×370 | Ball | 4 | 1/2″ |
Motor Cross Reference
| Rostock | GE | AO Smith | Fasco | Marathon | Packard | Wagner | Mars | Emerson |
|---|---|---|---|---|---|---|---|---|
| RS1971 | 3584 | D1026 | D725 | X001 | 43584 | WG840584 | 10584 | 1971 |
| RS1972 | 3586 | D1036 | D923 | X003 | 43586 | WG840586 | 10586 | 1972 |
| RS1973 | 3588 | D1056 | D703 | X005 | 43588 | WG840588 | 10588 | 1973 |
| RS8905 | – | – | – | – | – | – | – | 8905 |
| RS5461 | 3464 | FD6000 | D833 | X073 | – | WG840464 | 10464 | 5461 |
