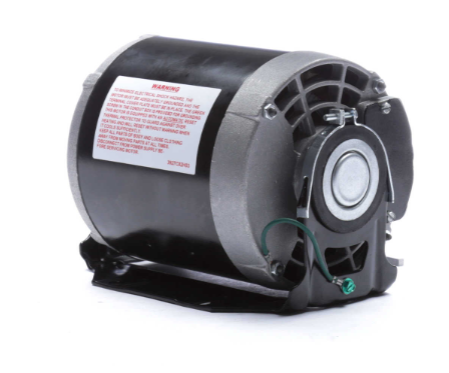

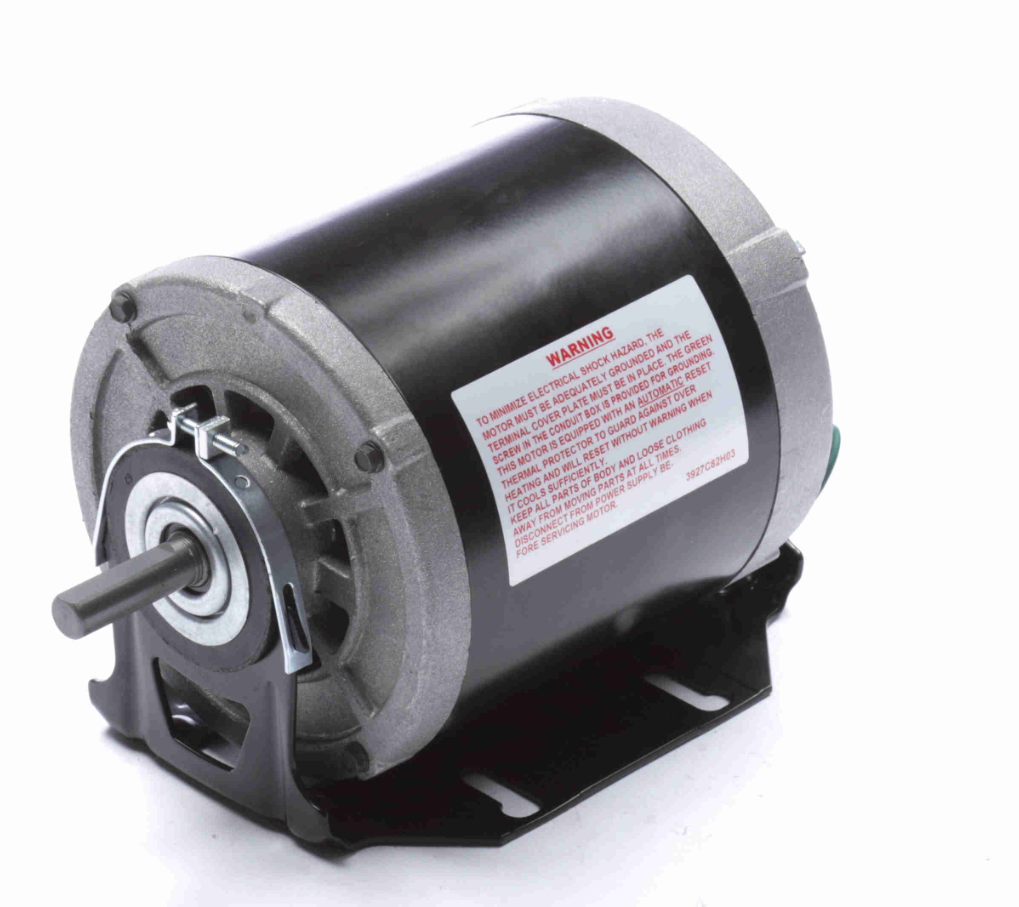

48 Frame Split Phase Resilient Mt. Motor
Brand:Lianjia Electric
Series:140 Series
Style:
Model:48 Frame Fan and Blower Motor
Service Hotline:008613961291308
Series:140 Series
Style:
Model:48 Frame Fan and Blower Motor
Service Hotline:008613961291308
♦Special note: slightly different from the actual product.
♦Customization: Supports non-standard customization.
♦Inventory delivery: National delivery guarantee!
♦Kind reminder: Non quality issues do not support returns!
♦Customization: Supports non-standard customization.
♦Inventory delivery: National delivery guarantee!
♦Kind reminder: Non quality issues do not support returns!
DESCRIPTION
Product Details
Brand
LJMOTOR
Manufacturer Part Number
LJMF2054D
Motor Application
Fan and Blower
Phase
Single
Motor Design
Split-Phase
HP
1/2
Nameplate RPM
1,725
No. of Speeds
1
Voltage
115/208-230V AC
Full Load Amps
7.2/3.6 A
Frame
48
Replacement For
BF2054
Usable @ 208V
Yes
Motor Service Factor
1.25
Motor Thermal Protection
Auto
Ins. Class
B
Max. Ambient Temp.
40 °C
Duty Cycle
Continuous
Motor Shaft Rotation
Reversible
Motor Enclosure Design
Open Enclosed
Motor Mounting Type
Resilient Base
Motor Frame Material
Rolled Steel
Shaft Dia.
5/8 in
Motor Shaft Design
Keyed
Motor Bearings
Bearing
Overall Length
8-7/8 in
Weight
17 lb
Standards
Application
Fans and Blowers
UNSPSC
26101602
Country of Origin
CHINA
