Series:140 Series
Style:Permanent Split Capacitor – 5 1/2” Diameter – With Fan Canopy/Rainshield

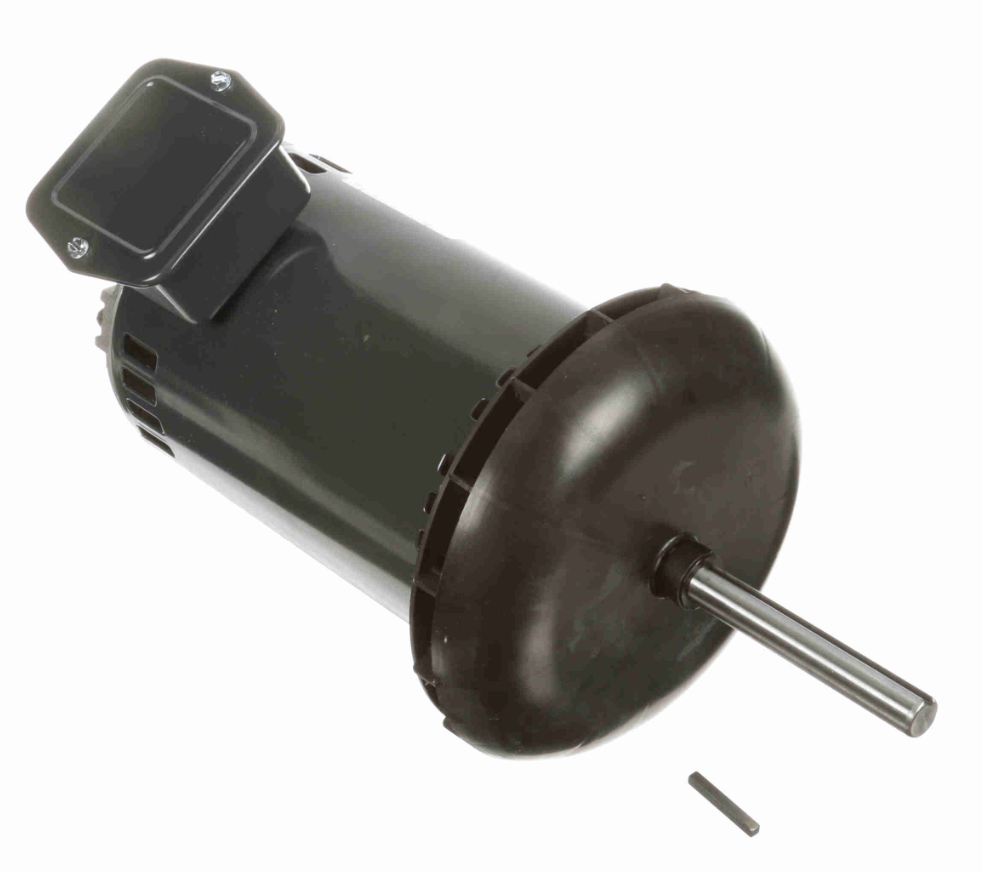

Model:Single Phase COMMERCIAL CONDENSER FAN
Service Hotline:008613961291308
♦Customization: Supports non-standard customization.
♦Inventory delivery: National delivery guarantee!
♦Kind reminder: Non quality issues do not support returns!
DESCRIPTION
Features
• Automatic thermal protection
• Class B insulation • Ball bearings
• 60°C ambient • Conduit box
• Shaft up applications
• Continuous air-over rating
• Capacitor not included
Applications
Designed for use on outdoor condenser fan and blower units with single phase power available.
Shaft FLA @ NP
HP RPM Spds Volts Base Rotation 230V 460V 575V
0.4 1075 1 200-230/460 NB REV 1.8 0.9 N/A
0.6 1075 1 200-230/460 NB REV 2.8 1.4 N/A
1075 1 200-230/460 NB REV 4.0 2.0 N/A
1075 1 575 NB REV 1.10
0.8 1075 1 200-230/460 NB REV 4.0 2.0 N/A
1075 1 200-230/460 NB REV 4.0 2.0 N/A
1.0 1075 1 200-230/460 NB REV 5.6 2.8 N/A
