Series:160 Series
Style:FAN AND BLOWER

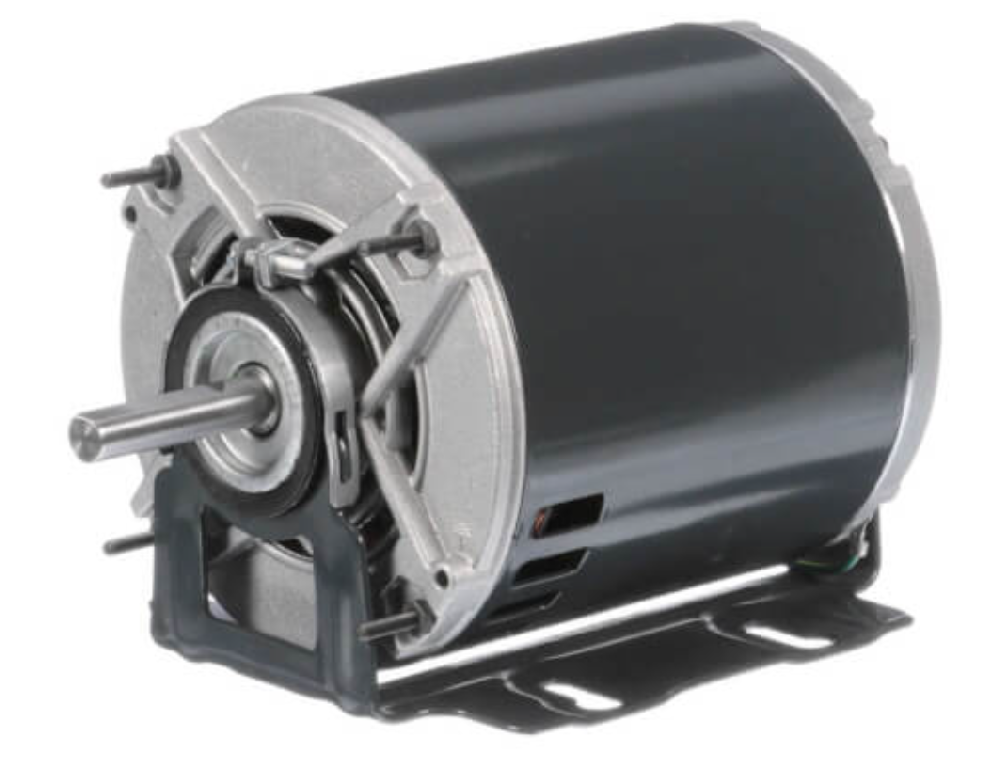

Model:Three Phase FAN AND BLOWER
Service Hotline:008613961291308
♦Customization: Supports non-standard customization.
♦Inventory delivery: National delivery guarantee!
♦Kind reminder: Non quality issues do not support returns!
DESCRIPTION
Features
• Ball bearings
• Optional extended clamp bolts
• Optional automatic thermal protection
• Selected EPAct (★) designs available
Applications
Designed for applications like commercial fans and blowers, direct and belt drive air handlers and exhaust fans
A Cat.
HP RPM Spds Volts Base Rotation @ NP
1/2 1140 1 208-230/460 NB CCW/CW 2.1-2.4/1.2
3/4 1140 1 208-230/460 NB CCW/CW 3.0-3.4/1.7
1 1140 1 208-230/460 WB CCW/CW 4.2-4.0/2.0
1140 1 208-230/460 NB CCW/CW 4.2-4.0/2.0
850 1 208-230/460 NB CCW/CW 5.1-5.2/2.6
1.5 1140 1 208-230/460 WB CCW/CW 5.1-5.0/2.5
1140 1 208-230/460 NB CCW/CW 5.1-5.0/2.5
